設備簡介

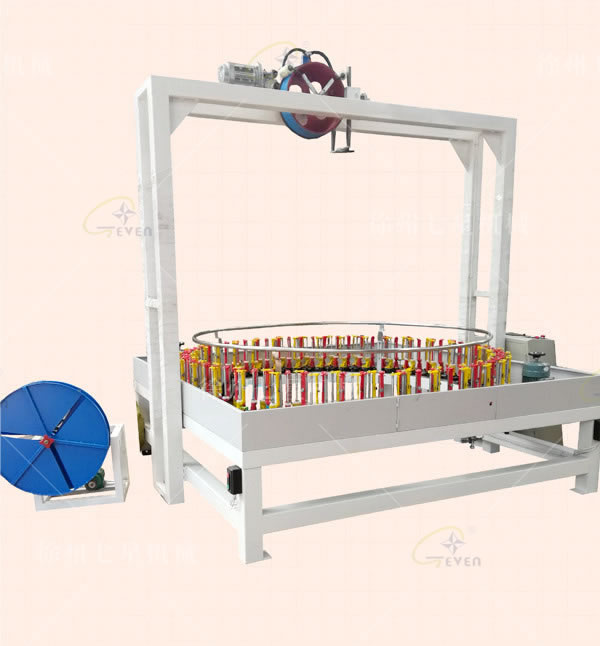

我公司生產的 110 系列高速編織機被廣泛的用于編織各種圓的或者扁的繩帶（拖車繩、行李繩、高壓膠管、裝飾繩、高空強力繩、松緊帶等）和電線電纜、屏蔽線等。
The high speed braiding machine we produce are commonly used to braid many kinds of both round and flat ropes/cords/laces ( tow ropes, luggage ropes, high pressure rubber hoses, decoration ropes, aerial ropes, elastic ropes, etc) and cables (shielded cable, etc.)
|
|
規格 |
錠數 |
頭數 |
撥盤尺寸 |
編織形式 |
紗管尺寸 |
編織范圍 |
轉速（RPM） |
|
金屬絲For wire |
||||||||
|
1 |
16/2 |
16 |
2 |
110 |
圓/Round |
Ø55*92/Ø55*162/Ø56*170 |
Ø5-10 |
300 |
|
2 |
24/2 |
24 |
2 |
110 |
圓/Round |
Ø55*92/Ø55*162/Ø56*170 |
Ø5-20 |
300 |
|
3 |
24/1 |
24 |
1 |
110 |
圓/Round |
Ø55*92/Ø55*162/Ø56*170 |
Ø5-20 |
300 |
|
4 |
32/1 |
32 |
1 |
110 |
圓/Round |
Ø55*92/Ø55*162/Ø56*170 |
Ø10-35 |
300 |
|
5 |
36/1 |
36 |
1 |
110 |
圓/Round |
Ø55*92/Ø55*162/Ø56*170 |
Ø15-40 |
300 |
|
6 |
48/1 |
48 |
1 |
110 |
圓/Round |
Ø55*92/Ø55*162/Ø56*170 |
Ø20-50 |
300 |
|
普通絲 For yarn |
||||||||
|
7 |
16/2 |
16 |
2 |
110 |
圓/Round |
Ø57*210 |
Ø5-12 |
300 |
|
8 |
24/2 |
24 |
2 |
110 |
圓/Round |
Ø57*210 |
Ø5-20 |
300 |
|
9 |
24/1 |
24 |
1 |
110 |
圓/Round |
Ø57*210 |
Ø5-20 |
300 |
|
10 |
32/1 |
32 |
1 |
110 |
圓/Round |
Ø57*210 |
Ø10-25 |
300 |
|
11 |
36/1 |
36 |
1 |
110 |
圓/Round |
Ø57*210 |
Ø15-40 |
300 |
|
12 |
48/1 |
48 |
1 |
110 |
圓/Round |
Ø57*210 |
Ø20-50 |
300 |
